AIR GOVERNOR FOR MILITARY TRUCKS USING A COMPRESSED AIR SYSTEM FOR BRAKING. FITS FOR USE ON M35A2, M35A3, M54A2, M809, AND M939 / M923 SERIES TRUCKS.

# 284358 & 10900525-5

THIS UNIT CAN BE MOUNTED DIRECTLY TO THE COMPRESSOR OR REMOTELY MOUNTED. THE CUT IN AND CUT OUT PRESSURES ARE ADJUSTABLE, BUT ARE PRESET TO BE AT 100 PSI AND 120 PSI

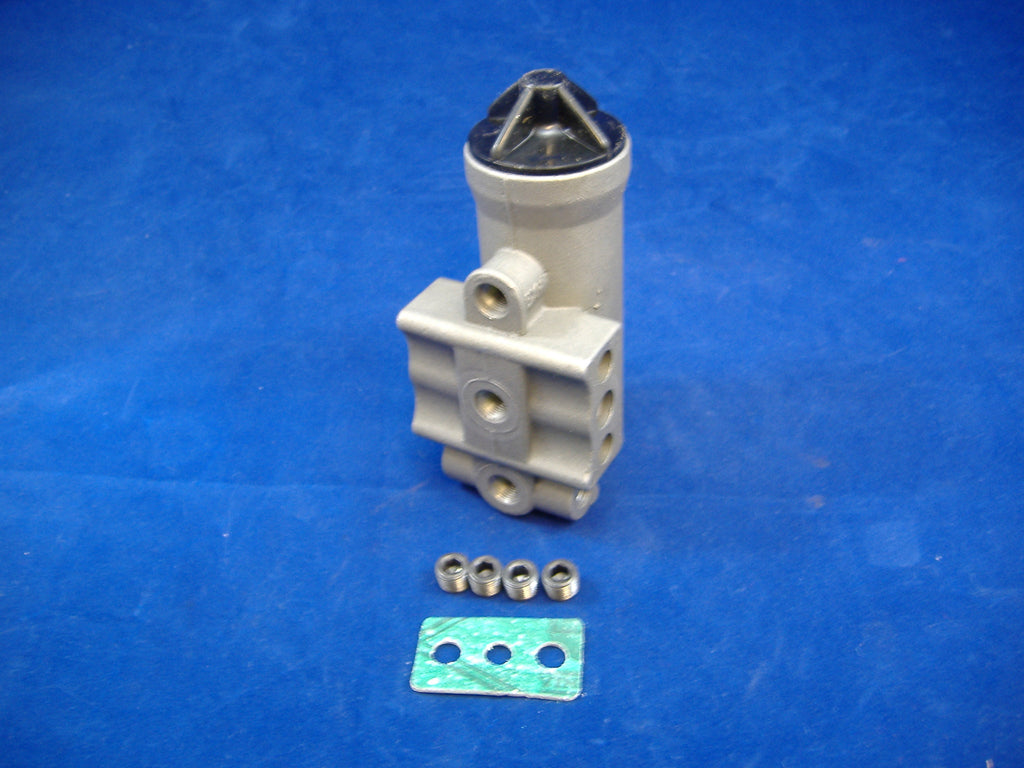

RATED FOR HIGH TEMPERATURE USE AND FEATURES 1/8" NPT PORTS.INCLUDES THE GASKET AND PLUGS FOR UNUSED PORTS

REPLACES THE FOLLOWING BENDIX D-2 GOVERNORS, 275491, 267051, 275200, 267098, 106400, N30190DA & CAT 4P5388.

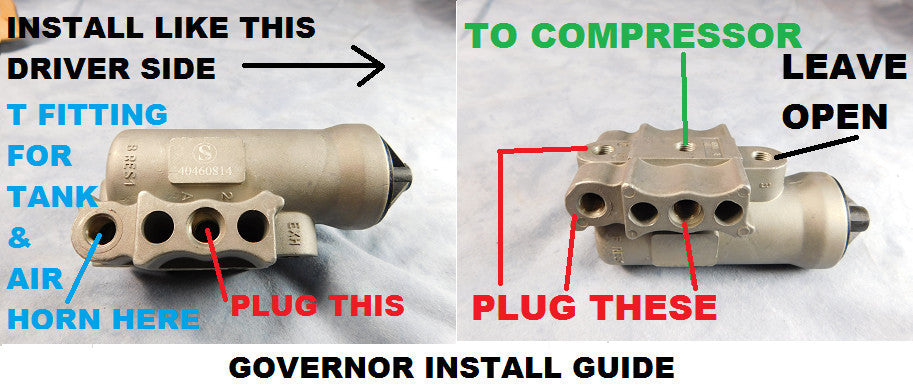

SEE DIAGRAM FOR BASIC INSTALL ON AN M35A2. CAN BE MOUNTED HOWEVER YOU LIKE, AND YOUR APPLICATION MAY DIFFER, BUT THIS IS HOW IT IS COMMONLY DONE ON A 2.5 TON.
